Tesla High Voltage Components

Tesla Electric Vehicle (High Voltage) Components

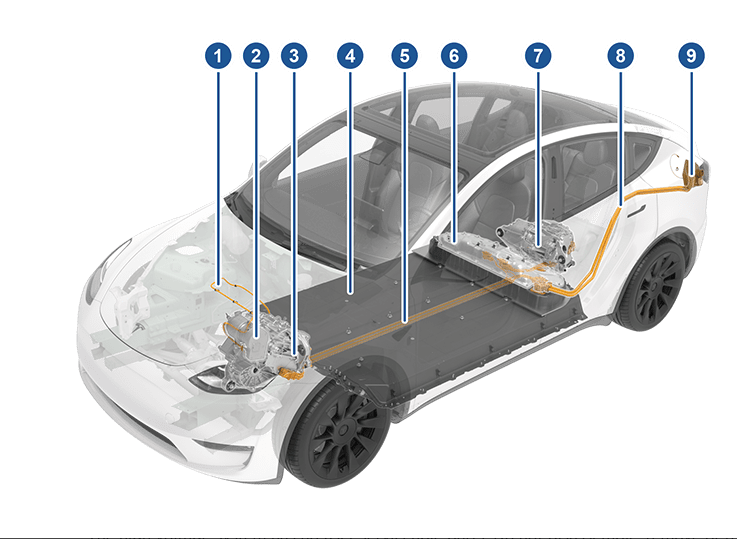

Tesla High Voltage Components
  1. Heat Pump Assembly
  2. Front Motor (Dual Motor vehicles only)
  3. High Voltage Battery
  4. High Voltage Cabling
  5. Service Access Panel for High Voltage Components (Penthouse)
  6. Rear Motor
  7. High Voltage Busbars
  8. Charge Port



Rapid Splitter

Rapid Splitter connects to Battery, Charger Module, Rear Motor Inverter and Front Junction Box.



Source Tesla Manual
